ALAKH ENTERPRISES

PUSH BUTTON STATION 3000 Series

Application: Zone - 1, Gases & Vapours of Group I, IIA & IIB as per IS : 2148-81 Ex-d
Protection: IP - 55 as per IS : 2147 - 62.
Certificate: C.M.R.S. no. V/1/1/266 dated 24-5-1988
Material: Al. alloy LM-6., C.I. on request.
Terminals: Clip-on types of suitable size.
Earthing: One each Internal & External
Wiring: PVC insulated copper conductor of suitable ratings.
Labels: Label & Tag Plate provide as required.
Mounting: Suitable for wall or structure mounting on cast Integrated Lugs having drilled hole of 8 dia.
Paint: Epoxy POWDER COATED of shade 631 externally or as required.
Cable Entry: 2 no. of 1" ET or equivalent
Weight: a. 4 kg Approx.     b. 6 Kg Approx.

Range:

Cat. No. Description Rating Cat. No. Description Rating
3100 ON/OFF Push Button 10A 3230 ON-OFF P. B. + Switch 16A
3200 ON-OFF Push Button 10A 3233 ON-OFF P. B. + Switch 32A
3300 Switch (DP) 16A 3262 ON-OFF P. B. + I. Lamp 2 no. 10A
3330 Switch (TP) 32A 3220 ON-OFF P. B. (2 Set) 10A
3400 Fire Alarm 10A 3062 Switch + I. Lamp - 2 no. 16A
3500 Limit Switch 10A 3070 Switch + Ammeter 16A
3610 Pilot Lamp - 1 no. 10A 3370 Switch + Ammeter 32A
3620 Pilot Lamp - 2 no. 10A 3032 Switch + ON-OFF P. B. 16A
3270 ON-OFF P. B. + Ammeter 10A 3210 DOL Starter upto 12.5 HP

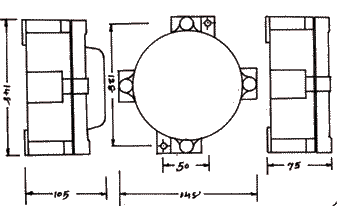

4 WAY JUNCTION BOX

Application: Zone - 1, Gases & Vapours of Group I, IIA & IIB as per IS : 2148-81 Ex-d.
Protection: IP-65/66 as per IS:2147-62
Certificate: V/1/5/272 dated 25-5-1988
Material: Cast Al. alloy LM-6., C.I. on request.
Terminals: Vibration proof/antiloosening type of suitable rating.
Earthing: 1 No Internal & 2 No. External
Labels: Label & Tag Plate provided as required.
Mounting: Suitable for wall or structure mounting on cast integrated lugs having drilled hole of 8 Dia.
Range:

Cat. No. Description
AIJB -100 4 way Junction Box

Cable Entry: 4 no of 3/4 ET upto 1" ET or equivalent.
Thread Forms: Std. thread will be ET/ BS Con. Other threads made on request.
Weight: 1 Kg Approx.

PUSH BUTTON STATION 100 Series.

control station Application : Zone - 1, Gases & Vapours of Group I, IIA & IIB as per IS:2148-81 Ex-d.
Protection : IP - 55 as per IS : 2147 - 62.
Certificate :
     C.M.R.S. NO. V/1/1/271 dated 25/5/88,
     CCE CERT. NO. R1(1)136/ALAKH/161 dated 18/3/98 ,
     BIS LICENSE NO. CM/L 6136964 dated 29/9/97
Material: AL. alloy LM-6., C.I. on request.
Terminals :
4 way Clip on types of suitable size.
Earthing : One each Internal & External.
Wiring : PVC insulated copper conductor of suitable ratings.
Labels : Label & Tag Plate provided as required.
Mounting :- Suitable for wall or structure mounting on bracket having drilled hole.
Paint: Epoxy POWDER COATED of shade 631 externally or as required.

Range:

Cat No. Description
100 ON /OFF PUSH BUTTON 10A
200 ON-OFF PUSH BUTTON 10A
300  SWITCH (DP) 16A
400 FIRE ALARM 10A
500  LIMIT SWITCH 10A
600 PILOT LAMP 10 W

Cable Entry: 1 no. Entry of 3/4" ET or equivalent.
Thread Forms : Std. threads will be ET / BS Con. Other threads like NPT/BSP, ISO, PG or equivalent made on request.
Weight: 1 Kg Approx
