FANS

EXHAUST FANS

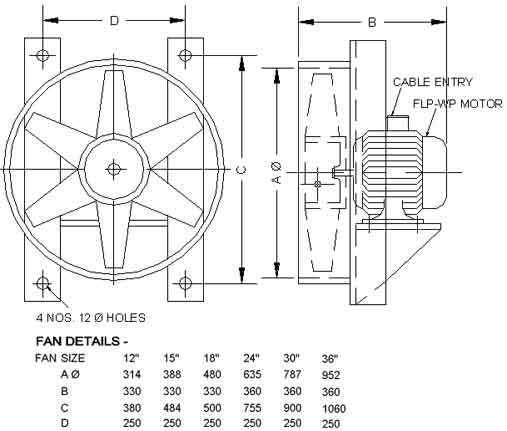

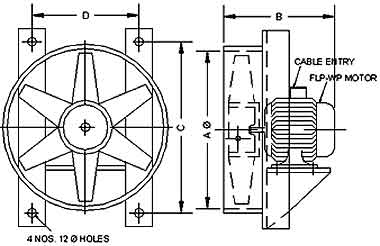

Flameproof Exhaust Fans - General Arrangement Application:
Group I, IIA, & IIB as per IS: 2148-1981 Ex-D
Protection:
IP-55 as per IS: 2147-1981OLTY if FLP/WP
Material:
C. I. Standard  OR  Cast Aluminium Alloy D16 optional
Earthing:
Internal 1 No. and External 2 Nos. each (M6)
Cable Entry:
1 No. - 3/4" BSC     4 Nos. - 1" ET on request
Motor Rating:
24/550 Volts AC, 1440 RPM, Single / Three Phase. Other RPMs are optional
Fan Size 12" 15" 18" 24" 30" 36"
314 388 480 635 787 952
B 330 330 330 360 360 360
C 380 484 500 755 900 1060
D 250 250 250 250 250 250
PEDESTAL FANS

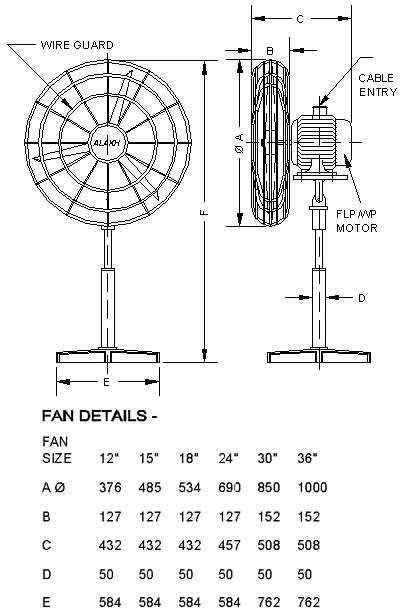

Flameproof Pedestal Fan - General Arrangement

Application:
Group I, IIA, & IIB as per IS: 2148-1981 Ex-D
Protection:
IP-55 as per IS: 2147-1981OLTY if FLP/WP
Material:
C. I. Standard  OR  Cast Aluminium Alloy D16 optional
Earthing:
Internal 1 No. and External 2 Nos. each (M6)
Cable Entry:
1 No. - 3/4" BSC
Motor Rating:
24/550 Volts AC, 1440 RPM, Single / Three Phase. Other RPMs are optional
Fan Size 12" 15" 18" 24" 30" 36"
376 485 534 690 850 1000
B 127 127 127 127 152 152
C 432 432 432 457 508 508
D 50 50 50 50 50 50
E 584 584 584 584 762 762
F 1124 1124 1124 1124 1124 1124
WALL MOUNTED FANS

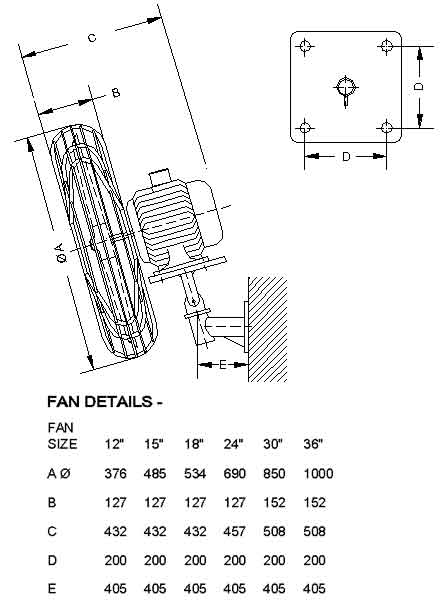

Flameproof Wall Mounted Fan - General arrangement

Application:
Group I, IIA, & IIB as per IS: 2148-1981 Ex-D
Protection:
IP-55 as per IS: 2147-1981OLTY if FLP/WP
Material:
C. I. Standard  OR  Cast Aluminium Alloy D16 optional
Earthing:
Internal 1 No. and External 2 Nos. each (M6)
Cable Entry:
1 No. - 3/4" BSC
Motor Rating:
24/550 Volts AC, 1440 RPM, Single / Three Phase. Other RPMs are optional
Fan Size 12" 15" 18" 24" 30" 36"
376 485 534 690 850 1000
B 127 127 127 127 152 152
C 432 432 432 457 508 508
D 200 200 00 200 200 200
E 405 405 405 405 405 405
HEAVY DUTY AIR CIRCULATORS
