SELF PRIMING PUMPS TYPE: ‘AO’
|
 |
-
Tolerance of capacity±
10% at rated
head and rated RPM.
-

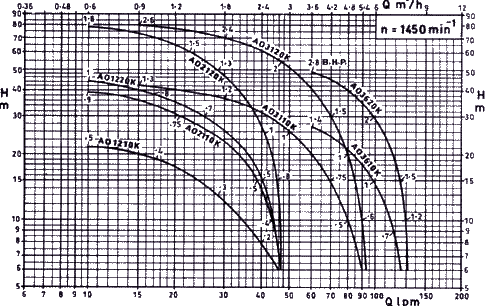

Discharge indicated in the selection
chart apply to water barometric height of 760 mm mercury column and
at a temperature of 300C.
-
Power indicated is that absorbed at
the pump shaft when pumping liquids having specific gravity of 1.0 and
viscosity of 1 CST.
-
Maximum permissible speed is 1800
RPM.
-
For standard execution maximum permissible
temperature of the liquid is 600C. Hot water construction (designated
by ‘H’) is also available for liquids with temperature between 600C.
|
-
For hot water pumps capacity will be
reduced by approximately 10%.
-
Direction of rotation – clock wise seeing
from the drive end. Reverse rotation (designated by ‘RR’) also available
on request.
-
Maximum suction lift is 8
meters. (Including
friction losses) depending pan the duty point. Capacity reduces over
4 M. suction lift.
-
Before starting valves on suction and
delivery sides must be opened.
- Before starting the pump for the first
time it must be filled with liquid to ensure priming. No
subsequent external priming is necessary.
|
|
|
TECHNICAL DATA:
Capacity: max. 130 LPM.
Head: max. 80 M.
Speed: 1450 RPM (Normal) 1800 RPM Max.)
Temperature: Max 600C for
standard pump Max 1000C for Hot water pump ‘H’
Suction lift: Max 8 M.
Rotation: clockwise when
looking from drive end. Anti-clockwise in ‘RR’ pump. |
|
|
FEATURES:
*Horizontal, lateral channel, self
priming design for continuous operation handling clear liquid free from
any
suspended particle.
*Suction and delivery branches are vertical and flanges are oval. Counter
flanges are provided with BSP
thread.
*Pumps are provided with one grease lubricated ball bearing and one bush
bearing flushed by liquid handled.
*For special applications mechanical seal can be fitted. |
|
|
APPLICATION:
*Transfer of liquid containing air or
gas
*Domestic water supply
*Various marine application
*Refrigeration, fuel oil etc.
|
|
|
MATERIAL:
*Suction cover, Delivery cover,
Intermediate parts -
Close Grained Cast Iron
*Impeller - HT Brass
*Shaft - Stainless Steel
*Shaft sealing - Gland Packing/Mechanical
Seal
Special materials also available on request. |
|
 |
Tolerance on capacity ± 10% at rated RPM.
Capacity applies to liquid at barometric
height of 760 mm mercury and at a temperature of 300C.
Power inputs indicated above are for
specific gravity of 1.0 and viscosity of 1 CST.
For hot water pump ‘H’ capacity is
reduced.
For suction lift of more than 4 M.
capacity is reduced.
|
|
|
 |

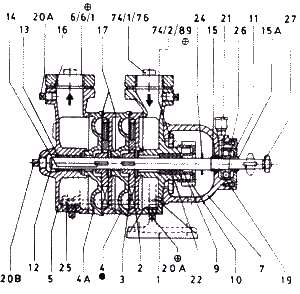

| 1 Suction cover |
16 Flange gasket |
| 2 Intermediate Part II |
*17
Paper gasket |
| *3
Impeller |
*19
Ball bearing |
| 4 Intermediate Part
I |
20A Plug, gauge |
| 5 Delivery cover |
20B Plug, shaft end |
| 6 Counter flange |
21 Grease cup |
| 6/1 Counter flange |
*22
Packing |
| 7 Bracket |
24 Water slinger |
| 9 Gland |
25 Tie bolt & nut |
| 10 Gland nut |
26 CSK Screw |
| 11 Bearing Cover |
*27
Nut, shaft end |
| *12
Shaft |
74/1 Bolt & Nut |
| *13
Bush Bearing |
74/2 Hex. HD. Screw |
| *14
Key |
76 Bolt & Nut |
| *15
Collar Ring (Inner) |
89 stud & nut |
| *15A
Collar
ring (outer) |
*Spares Recommended
|
|
|
