Elecon Worm Gear-NU-U (4"-8") Series



MECHANICAL GEAR BOXES (SPEED REDUCERS)

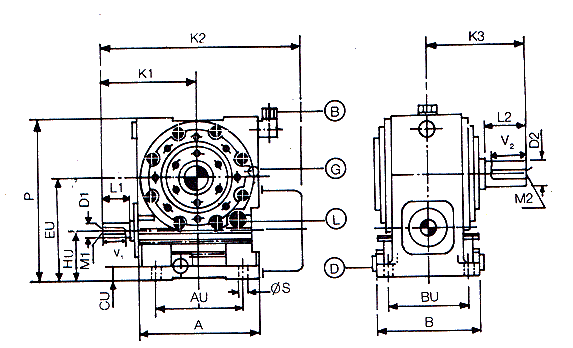

WORM GEAR NU-U 4" TO 8" SERIES DIMENSIONAL DRAWING

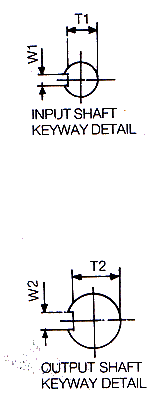

Size	A	AU	B	BU	CU	OS	HU	EU	K1	K2	K3	P	D1	L1	M1	T1	W1	D2	L2	M2	T2	W2	V1	V2
4 NU	250	180	200	160	25	18	108	209.6	215	440	215	324.6	32	65	M12	27	10	45	90	M16	39.5	14	60	85
5 NU	300	220	252	200	30	18	118	245	242	492	235	385	35	70	M12	30	10	50	100	M16	44.5	14	65	95
6 NU	354	266	302	241	32	23	127	279.4	279	580	274	449.4	38	75	M12	33	10	58	114	M20	52	16	70	111
7 NU	400	306	340	266	36	23	146	323.8	311	656	287	524	40	82	M16	35	12	65	130	M20	58	18	79	127
8 NU	440	343	340	266	40	27	146	349.2	342	710	312	574.2	45	88	M16	39.5	14	70	140	M20	62.5	20	85	137
