ALAKH® ENTERPRISES

"ALAKH" MAKE FLAMEPROOF WEATHERPROOF SWITCH SOCKET & PLUG OUTLET

Application: Zone - 1, Gases & Vapours of Group I, IIA & IIB as per IS:2148-81 Ex-d.
Protection: IP - 55 as per IS : 2147 - 62.
Certificate: C.M.R.S. no. V/1/1/277 dated 25/05/88.
Material: AL. alloy LM-6./ C.I.
Terminals: Clip on types of suitable size.
Earthing: One each Internal & External.
Wiring: PVC insulated copper conductor of suitable ratings.
Labels: Label & Tag Plate provided as required.
Mounting: Suitable for wall or structure mounting on bracket having drilled hole.
Paint: Epoxy POWDER COATED of shade 631 externally
Range:

Cat No. Description
1061 16 Amp., 500volt,a.c.-2P+E
1062 32 Amp., 500 volt , AC – 3P +E
1063 63 Amp., 500 Volt AC – 4P +E

Cable Entry: Made as per customer requirements max. upto 11/2" ET or equivalent.
Thread Forms: Std. threads will be ET / BS Con. Other threads like NPT/BSP, ISO, PG or equivalent made on request.
Weight: 9 Kg APPROX

switch socket & plug outlet

ALAKH" MAKE FLAMEPROOF WEATHERPROOF LOW VOLTAGE SWITCHGEARS 1000 Series

low voltage switcggears

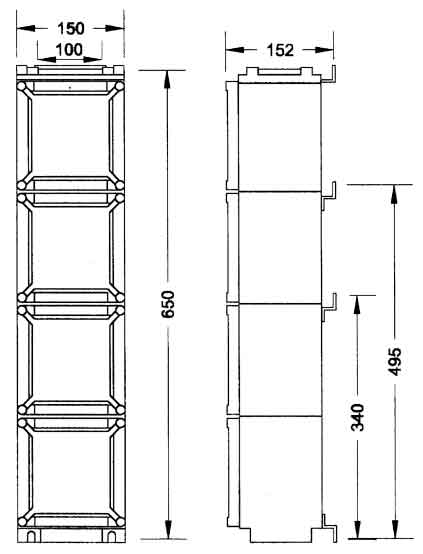

Low Voltage Switchgears - General Arrangement

Application: Zone - 1, Gases & Vapors of Group I, IIA & IIB as per IS:2148-81 Ex-d.
Protection: IP - 55 as per IS : 2147 - 62.
Certificate:
   C.M.R.S. No. V/1/1/1059 dated 16/10/87,
  CCE CERT. No. R1(1)136/ALAKH/161 DT. 18/3/98 ,
  BIS License No. CM/L 6136964 DT. 29/9/97,
  D.G.M.S. No. 447/524/EHQ DT. 7/8/95
Material: AL. alloy LM-6., C.I. on request.
Terminals: Clip on types of suitable size.
Earthing: One each Internal & External.
Wiring: PVC insulated copper conductor of suitable ratings.
Labels: Label & Tag Plate provided as required.
Mounting: Suitable for wall or structure mounting on bracket having drilled hole.
Paint: Epoxy POWDER COATED of shade 631 externally or as required.
Front Cover: Hinge can be provided on front cover on request.
Cable Entry: 2 nos. Entries at bottom per face of 1 no. Of 3/4" ET with plug of 3/4" ET. For other thread forms consult sales dept.
Thread Forms: Std. threads will be ET / BS Con. Other threads like NPT/BSP, ISO ,PG or equivalent made on request.
Weight: 3 Kg per unit Approx

Range:

Cat. No. Description Cat. No. Description
1011 ONLY ON/OFF PUSH BUTTON 10A 1044 TEMP. INDICATOR 10A
1012 ON-OFF PUSH BUTTON 10A 1045 PH METER 10A
1013 ON-OFF-CLOSE ( 3 NO. P. B.) 10A 1046 OTHER INSTRUMENTS 10A
1014 ON-OFF (2SETS) 4 NO. P. B.) 10A 1051 1 NO. I. LAMP 10W
1015 ON-OFF P. B. WITH SWITCH (TP) 16A 1052 2 NO. I. LAMP 10W
1016 ON-OFF P. B. WITH I. LAMP 10A 1053 3 NO. I. LAMP 10W
1017 ON/OFF P. B. WITH I. LAMP 10A 1054 4 NO. I. LAMP 10W
1018 SWITCH (TP) WITH I. LAMP 16A 1061 ELECTRIC BELL 10A
1019 FIRE ALARM 10A 1071 TRANSFORMER 60 VA
1021 SWITCH ( TP) 5A 1072 TRANSFORMER 100 VA
1022 SWITCH (TP) 10A 1073 TRANSFORMER 110 VA
1023  SWITCH (TP) 16A 1074 TRANSFORMER 125 VA
1024  SWITCH (TP) 25A 1081 FUSE UNIT 5A
1025 SWITCH (TP) 32A 1082 FUSE UNIT 10A
1026 SWITCH (TP) 40A 1083 FUSE UNIT 16A
1027 SWITCH (TP) 63A 1084 FUSE UNIT 25A
1031 M. C. B. (TP) 5A 1085 FUSE UNIT 32A
1033 M. C. B. (TP) 10A 1086 FUSE UNIT 40A
1034 M. C. B. (TP) 20A 1087 FUSE UNIT 63A
1035 M. C. B. (TP) 30A 1091 DOL STARTER 10 HP
1036 M. C. B. (TP) 40A 1092 DOL STARTER 20 HP
1037 M. C. B. (TP) 60A 1093 DOL STARTER 25 HP
1041 AMMETER 10A 1094 STAR DELTA STARTER 10 HP
1042 VOLTMETER 10A 1095 STAR DELTA STARTER 20 HP
1043 COS F METER 10A J. B.-JUNCTION BOX 1096 STAR DELTA STARTER 25 HP
