CENTRIFUGAL SELF PRIMING PUMPS TYPE: ‘SH’

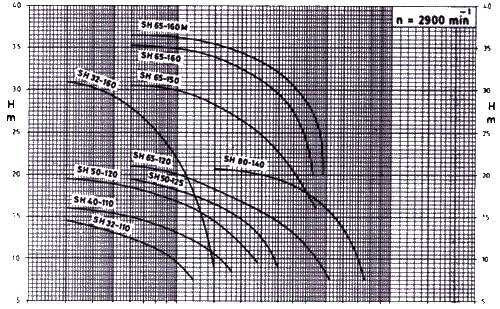

TECHNICAL DATA:

Capacity: Max.75 M3/Hr.
Head: Max.36 M.
Speed: 2900 RPM (Normal)     3600 RPM (Max)
Suction lift: Max 8 M.
Temperature: Max 600C.
Rotation: Clockwise when looking from drive end.

FEATURES:

*Suitable for handling liquids containing solid particles.
*Back pull out design.
*Fitted with two ball bearings with grease packed for
  life Fitted with mechanical seal, which can not run
  dry because of oil reservoir in pump.
*Prior to commissioning liquid is filled in the pumps. *After shut down enough liquid remains in pumps to
  prime again.
*Priming time is minimum.

APPLICATION:

*Drainage and irrigation,
*Sewage and effluent treatment plant,
*Construction sites,
*Transfer of oil petrol,
*Various marine applications like General Service, fire
  fighting, bilge etc.

MATERIAL:

*Pump Casing: Close Grained Cast Iron
*Suction Cover: Close Grained Cast Iron
*Stuffing Box: Closed Grain Cast Iron
*Impeller: Close grained cast iron
*Shaft: Stainless steel

Other materials like Bronze also available on request
Performance tolerance is as per IS 9137 class C.
For other duties consult manufacturer.

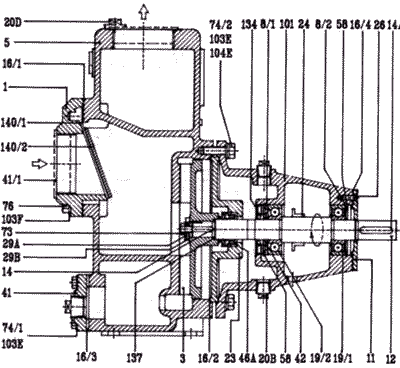

LIST OF PARTS

1 Suction cover 29A Tab washer
3 Impeller 29B Lock washer
5 Pump casing 41 Hole cover
8/1 Ground ring 41/1 Hole cover
8/2 Ground ring 42 Nilos ring
11 Bearing cover

46A Mechanical seal unit
12 Shaft 58 Circlip
14 Key 73 Screw
14a Key 74/1 Screw
16/1 Gasket 74/2 Screw
16/2 Gasket 76 Screw
16/3 Gasket 101 Bearing housing
16/4 Gasket 103E Plain washer
19/1 Bearing

103F Plain washer
19/2 Bearing 104E Spring washer
20B Plug 134 Oil seal
20D Plug 137 Shim
23 Stuffing box 140/1 Non return valve
24 Water thrower 140/2 Non return valve
26 Screw
