Elecon Worm Gear-NU-U, O, V Series



MECHANICAL GEAR BOXES (SPEED REDUCERS)

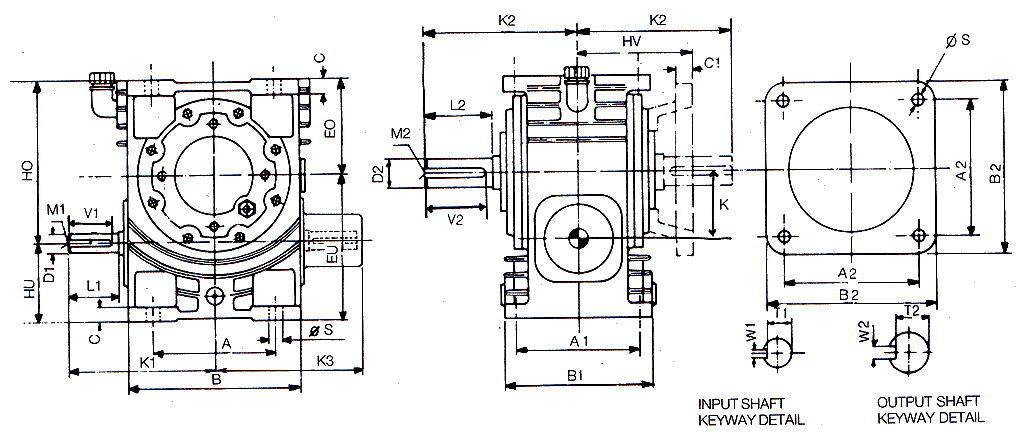

MODULAR WORM GEAR 2 TO 3 NU-U, O, V SERIES DIMENSIONAL DRAWING

Size	A	B	A1	B1	C	A2	B2	C1	ØS	HU	EU	HO	EO	HV	K	K1	K2	K3	D1	L1	M1	T1	W1	D2	L2	M2	T2	W2	V1	V2
2NU	95	142	100	125	14	120	150	14	11	70	120.8	133.8	83	94	50.8	133	128	140	16	47	…	13	5	25	57	..	21	8	45	55
2 1/4 NU	105	152	105	132	14	120	150	14	11	70	127.15	142.15	85	100	57.15	142	136	150	22	50	…	18.5	6	25	60	…	21	8	45	55
3 NU	140	180	160	192	20	200	240	16	14	102	178.2	181.2	105	125	76.2	155	175	165	25	50	M8	21	8	38	75	M12	33	10	45	70
