ALAKH ENTERPRISES

PUSH BUTTON STATION 2000 Series

control & indicating device Application: Zone - 1, Gases & Vapors of Group I, IIA & IIB as per IS:2148-81 Ex-d.
Protection: IP - 55 as per IS : 2147 - 62.
Certificate:
   C.M.R.S. no. V/1/1/1255 dated 14/9/87,
   CCE CERT. NO. R1(1)136/Alakh/161 dated 18/3/98 ,
   BIS LICENSE NO. CM/L 6136964 dated 29/9/97.
Material: AL. alloy LM-6., C.I. on request.
Terminals: 4 way Clip on types of suitable size.
Earthing: One each Internal & External.
Wiring: PVC insulated copper conductor of suitable ratings.
Labels: Label & Tag Plate provided as required.
Mounting: Suitable for wall or structure mounting on bracket having drilled hole.
Paint: Epoxy POWDER COATED of shade 631 externally or as required.
Cable Entry:
1 no. Entry of 1" ET at bottom with " ET reducer & 1 no. " ET at side.

Range:

Cat No.  Description
2110 ON /OFF PUSH BUTTON 10A
2220 ON-OFF PUSH BUTTON 10A
2330 SWITCH (DP) 16A
2440 FIRE ALARM 10A
2550 LIMIT SWITCH 10A
2660 PILOT LAMP 10 W

Thread Forms: Std. threads will be ET / BS Con. Other threads like NPT/BSP, ISO, PG or equivalent made on request.
Weight: 2 Kg APPROX

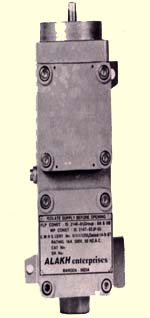

LIMIT SWITCH

limit switch

Application: Zone - 1, Gases & Vapours of Group I, II & IIB as per IS:2148-81 Ex-d
Protection: IP - 55 as per IS : 2147-62
Certificate: C.M.R.S. no. V/1/1/1255 dated 14-9-87
Material: Al. alloy LM-6., C.I. on request.
Terminals: 4 way, 15A Terminal strip
Earthing: One each Internal & External
Wiring: PVC insulated copper conductor of suitable ratings
Labels:
Label & Tag Plate provided as required.
Mounting: Suitable for wall or structure mounting on cast Integrated Lugs having drilled hole of 8 Dia.
Paint: Epoxy POWDER COATED of shade 631 externally or as required.
Cable Entry: 1 No. of 3/4" ET at bottom & 1 No. of 3/4" ET at side.

Perfect Lever Arrangements:

Range :

Cat. no.

Description

2550 Limit Switch

Thread Forms: Std. threads will be ET / BS Con. Other threads like NPT/BSP, ISO, PG or equivalent made on request.
Weight: 2 Kg Approx.
